Architectural vs. 3-Tab Shingles: What Every Homeowner Should Know

Picking the right asphalt shingle type is the single most important material decision you will face during a roof replacement. Industry data from early 2026 shows that architectural shingles now account for more than 70 percent of new residential installations across the country.

That number keeps climbing for good reason. Here in West Hartford, where freeze-thaw cycles, Nor’easters, and heavy snow loads are part of life, the performance gap between architectural and 3-tab products is impossible to ignore.

What separates the two shingle types

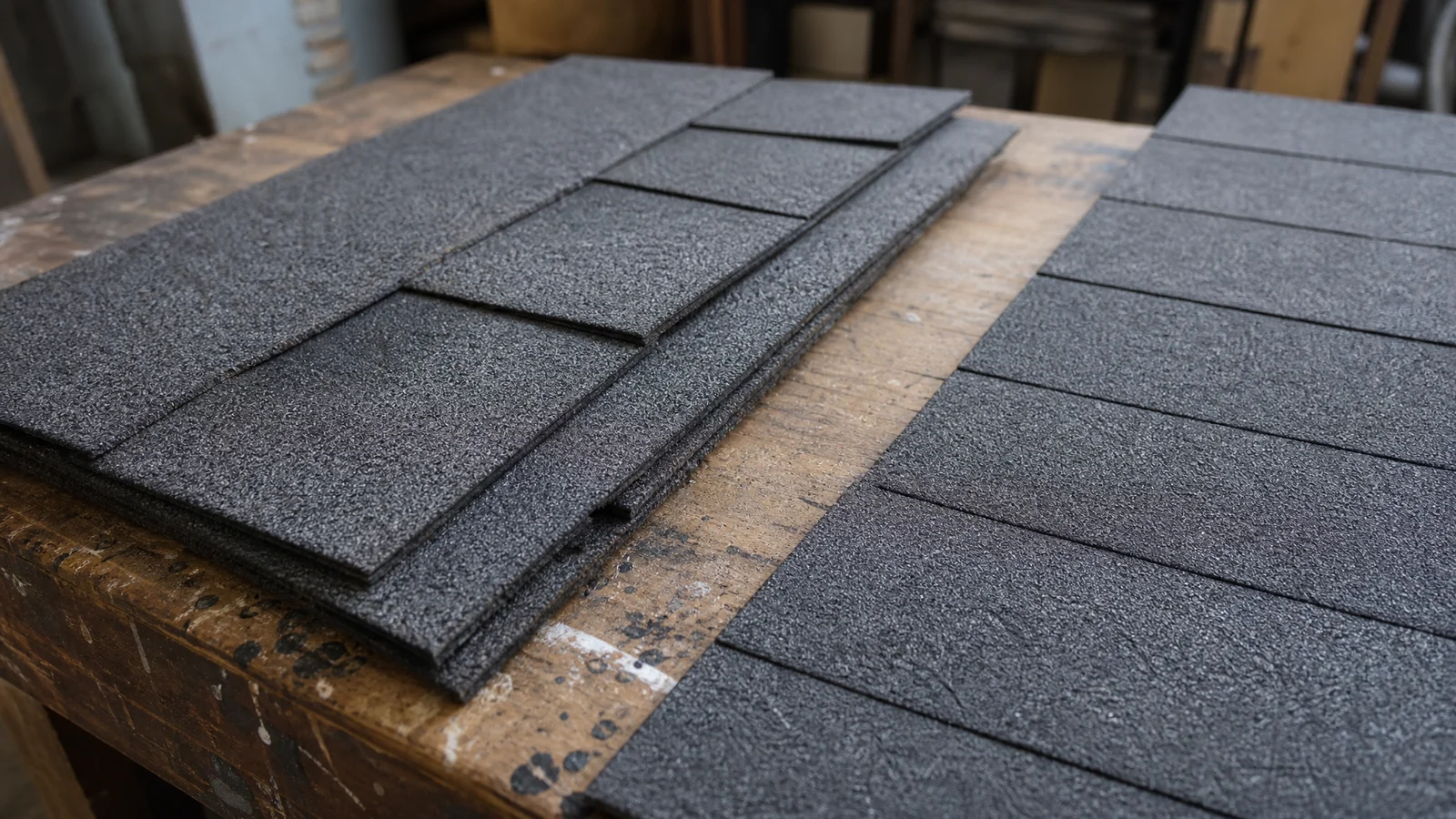

Both architectural and 3-tab shingles use an asphalt-and-fiberglass base, but the construction method is completely different.

A 3-tab shingle is a single flat strip with three uniform cutouts stamped into the bottom edge. It lies flush against the deck and produces a clean, repetitive pattern. You will recognize this look on most homes built from the 1970s through the 1990s.

Architectural shingles (also called dimensional or laminated shingles) bond two or more layers of asphalt together. The result is a thicker, heavier product that creates realistic shadow lines mimicking wood shake or natural slate when viewed from the curb.

Performance comparison at a glance

Understanding the numbers side by side makes the choice much clearer.

3-Tab shingles:

• Wind rating up to 60 mph
• Typical CT lifespan of 15 to 20 years
• Weight around 200 to 250 lbs per square
• Installed cost roughly $2.75 to $4.25 per square foot

Architectural shingles:

• Wind rating of 110 to 130 mph (Class F ratings available)
• Typical CT lifespan of 25 to 30 years
• Weight around 250 to 450 lbs per square
• Installed cost roughly $4.00 to $6.50 per square foot

The wind rating difference is critical in our region. A standard 3-tab roof is rated for just 60 mph gusts, well below the force a strong Nor’easter can produce. Many Connecticut insurance carriers now use aerial drone imagery to inspect roof condition, and a deteriorating 3-tab installation can trigger a policy non-renewal letter.

GAF Timberline HDZ

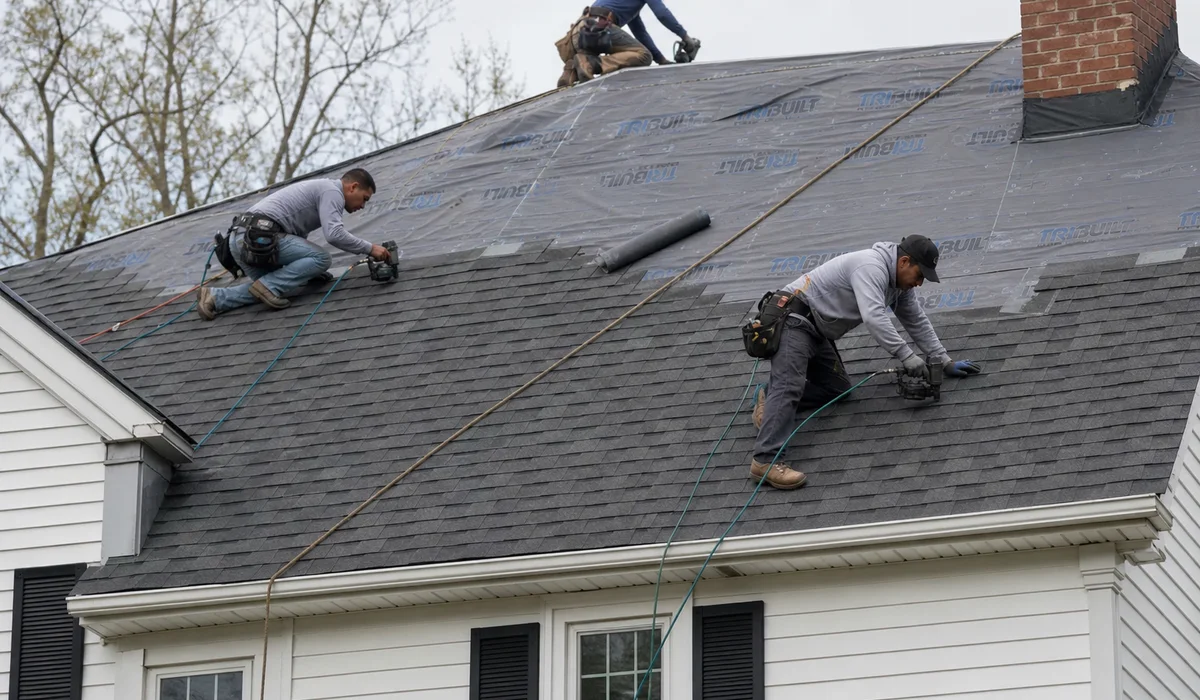

GAF is North America’s largest roofing manufacturer, and the Timberline HDZ is its flagship architectural line. West Hartford Roofing installs this product on a large share of our residential projects.

The standout feature is LayerLock technology, which mechanically fuses the shingle layers together rather than relying on adhesive alone. When paired with four specific GAF accessory components, the Timberline HDZ qualifies for the WindProven Limited Wind Warranty. This is an industry-first guarantee that removes any maximum wind speed limit entirely.

The line also includes StainGuard Plus algae protection, which prevents the dark streaks that tend to form on lighter-colored roofs over time.

Owens Corning TruDefinition Duration

The Duration line’s defining innovation is SureNail Technology. A tough, woven fabric strip is embedded directly into the nailing zone of every shingle, giving installers a visible, reinforced target. That strip prevents nail heads from tearing through the asphalt during severe weather and allows the shingle to reach a 130 mph wind rating with only four nails per shingle.

The TruDefinition color palette also delivers deeper contrast and richer dimension at a distance than many competing lines. Homeowners in West Hartford’s historic neighborhoods often choose Duration for its natural, textured appearance.

Situations where 3-tab still works

Despite the performance advantages of architectural products, there are a few narrow cases where 3-tab remains the practical pick.

• Budget-driven investment properties. If you are preparing a rental unit for quick resale and need the lowest possible material cost, 3-tab keeps the upfront spend down.
• Matching existing 3-tab roofs. When storm damage affects one section of a roof that already has 3-tab shingles, a color-matched 3-tab patch is the only way to maintain a consistent look.
• Detached outbuildings. A standalone shed or garage with low replacement value rarely justifies the cost of premium wind-rated shingles.

For any primary residence you plan to live in for more than a handful of years, the payback period on architectural shingles is well worth the upfront investment.

Moving beyond standard architectural products

If your goals go beyond standard durability, take a look at our comparison of architectural vs designer shingles. Designer lines like GAF Camelot II, CertainTeed Grand Manor, and Owens Corning Berkshire offer the look of natural slate or cedar shake without the structural weight those materials require. Homeowners in West Hartford Center and along the town’s historic corridors frequently choose these luxury options.

Ready to discuss which shingle type fits your property and budget? Browse our full roof replacement service page or request a written estimate to get started.
